Description

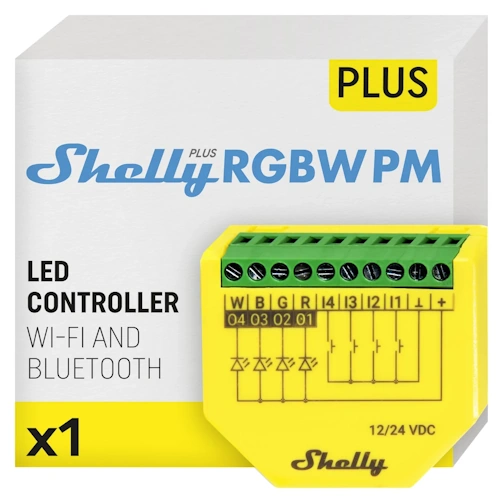

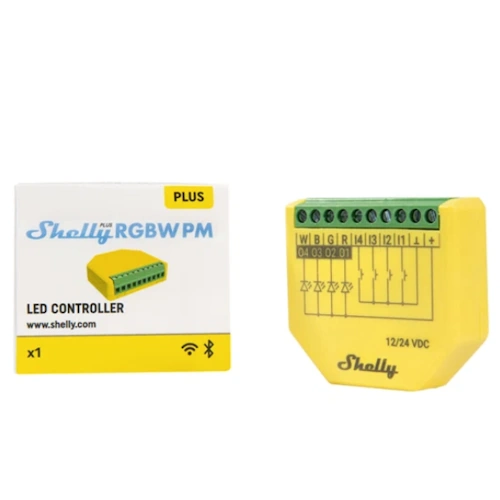

Shelly Plus RGBW PM Smart Wi-Fi RGBW LED Controller with Power Monitoring
Take complete control of your 12V or 24V LED strip lighting with the Shelly Plus RGBW PM a compact and versatile smart LED controller combining precise colour control, brightness adjustment, power monitoring and advanced automation.
Whether you’re creating ambient mood lighting, RGB accent lighting, under-cabinet illumination, cove lighting or architectural LED installations, the Shelly Plus RGBW PM gives you flexible control from your smartphone, smart-home platform or automation system.
Unlike a basic RGB controller, the Shelly Plus RGBW PM offers three operating profiles, allowing the same controller to be configured for RGBW, RGB or four independent single-colour lighting channels.
And because it includes integrated power monitoring, you can see how much electricity your LED installation is consuming and incorporate energy data into your smart-home automations.
Three Lighting Modes in One Controller
The Shelly Plus RGBW PM can be configured to suit different LED installations.
🌈 RGBW Mode
Control:
- Red
- Green
- Blue
- White
Independently.
This allows you to create colourful lighting effects while retaining a dedicated white channel for practical illumination.
🌈 RGB Mode
Designed for standard RGB LED strips, providing independent control of the red, green and blue channels.
Create custom colours, adjust brightness and automate your lighting according to your schedule or environment.
💡 Light Mode – Four Independent Channels
Configure the controller as four independent lighting channels.
This makes the Shelly Plus RGBW PM useful for installations where you want to control four separate single-colour or white LED strips from one compact controller.
For example:
- Kitchen under-cabinet lighting
- Bedroom accent lighting
- Multiple cove-lighting zones
- Display cabinets
- Retail lighting
- Four separate rooms or zones
This flexibility makes the Shelly Plus RGBW PM much more than an RGB controller.
Key Features & Benefits
⚡ Real-Time Power Monitoring
Monitor the electrical performance of your LED installation with integrated power measurement.
The Shelly Plus RGBW PM can provide information about:
- Voltage
- Current
- Power consumption
Use this information to understand how much energy your lighting uses and identify opportunities to improve efficiency.
Power monitoring can also be incorporated into advanced automations and energy-management systems.
🎨 Precise RGBW Lighting Control
Create the perfect lighting atmosphere by independently controlling your RGB and white channels.
Adjust brightness and colour to create everything from subtle ambient illumination to vibrant accent lighting.
The controller supports features such as:
- Brightness adjustment
- Colour control
- White-channel control
- Fade effects
- Transitions
- Minimum brightness
- Maximum brightness
- Night Mode
🔄 Flexible Lighting Profiles
Choose the configuration that best suits your installation:
| Profile | Configuration | Ideal For |
|---|---|---|
| RGBW | RGB + dedicated White | Colour + practical white lighting |
| RGB | Red + Green + Blue | Colour LED strips |
| Light ×4 | Four independent channels | Multiple white/single-colour strips |
This means one controller can be used for a wide variety of LED projects.
🔌 High-Current Output
The Shelly Plus RGBW PM supports up to:
4A per channel
with a maximum combined output of:
10A total
This provides plenty of capacity for many residential and commercial LED strip installations when correctly sized for the connected lighting and power supply.
Always ensure that the total LED load remains within the controller’s specified limits.
🌐 Wi-Fi – No Hub Required
Connect the Shelly Plus RGBW PM directly to your 2.4GHz Wi-Fi network.
No proprietary hub is required.
Control your LED lighting from your smartphone, web browser or compatible smart-home platform while also retaining the option for advanced local automation.
This makes it easy to add smart lighting to an existing home network without installing another dedicated gateway.
📶 Bluetooth Connectivity
Bluetooth provides convenient device setup and configuration.
The Shelly Plus RGBW PM can also function as a Bluetooth gateway for compatible Shelly BLU devices, allowing you to expand your smart-home system without installing additional gateways.
🤖 Advanced Smart-Home Automation
The Shelly Plus RGBW PM is designed for users who want more than simple app-based lighting control.
Create sophisticated automations using:
- Schedules
- Timers
- Scenes
- Local actions
- Webhooks
- MQTT
- WebSockets
- HTTPS
- mJS scripting
- TLS
This makes the controller particularly well suited to Home Assistant and advanced DIY smart-home installations.
Perfect for Home Assistant
The Shelly Plus RGBW PM is an excellent choice for Home Assistant installations where local control, detailed automation and flexible LED management are important.
Create automations such as:
Sunset → Turn on cove lighting
Motion detected → Turn on hallway LEDs
Late evening → Reduce brightness
Night → Switch to warm/low-level lighting
No one home → Turn off decorative lighting
You can also combine the controller’s power data with other sensors and devices to create more sophisticated energy-aware automations.
Smooth & Customisable Lighting
Fine-tune the behaviour of your LED strips to achieve the exact effect you want.
The Shelly Plus RGBW PM provides configurable lighting parameters including:
- Minimum brightness
- Maximum brightness
- Fade rate
- Transition duration
- Night Mode
- PWM frequency
A high-frequency PWM option of up to 22kHz can also help reduce audible noise in suitable installations.

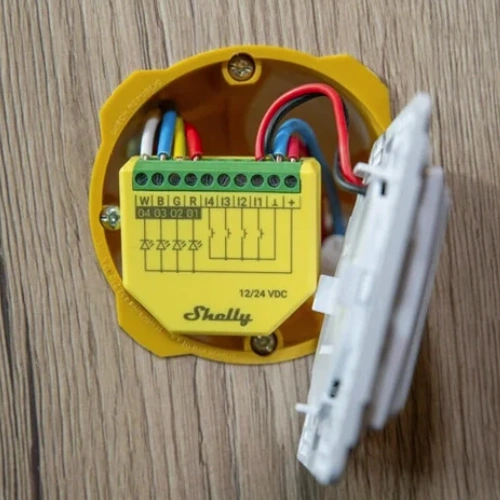

Compact Design for Discreet Installation
The Shelly Plus RGBW PM measures just:
42 × 37 × 12 mm
Its ultra-compact design makes it easy to hide inside cabinets, ceiling spaces, lighting installations and other locations where conventional LED controllers may be too large.
It’s particularly useful for retrofit projects where space is limited.
Ideal Applications
The Shelly Plus RGBW PM is perfect for:
🏠 Home Lighting
- Living-room accent lighting
- Bedroom mood lighting
- Kitchen lighting
- Hallways
- Entertainment areas
🍳 Kitchen & Cabinet Lighting
Control multiple under-cabinet LED strips individually or create automated lighting scenes.
🛋️ Ambient & Architectural Lighting
Perfect for:
- Cove lighting
- Ceiling accents
- Wall lighting
- Stair lighting
- Display lighting
🖥️ Entertainment Areas
Create automated RGB lighting around:
- TVs
- Gaming rooms
- Home theatres
- Desks
- Media centres
🏪 Commercial & Retail Lighting
Use multiple channels for display cabinets, shelving, signage and architectural lighting while monitoring energy consumption.
Designed for 12V & 24V LED Systems
The Shelly Plus RGBW PM is designed specifically for constant-voltage DC LED strips.
It is compatible with systems using:
12V DC
or
24V DC
A suitable DC power supply is required and should be correctly sized for the total LED load.
Important:
The Shelly Plus RGBW PM is not designed to connect directly to mains-voltage LED lighting.
Do not connect the output directly to 110–240V AC lighting or use it with constant-current LED systems.
Specifications at a Glance
| Specification | Details |
|---|---|
| Model | Shelly Plus RGBW PM |
| Model Number | SNDC-0D4P10WW |
| Output Type | PWM LED controller |
| Power Supply | 12V / 24V DC |
| Profiles | RGBW / RGB / Light ×4 |
| Maximum Current | 4A per channel |
| Maximum Total Current | 10A |
| Power Monitoring | Yes |
| Wi-Fi | 802.11 b/g/n, 2.4GHz |
| Bluetooth | Bluetooth 4.2 |
| PWM Frequency | Up to 22kHz (default 833Hz) |
| Automation | Schedules, scenes, local actions & scripting |
| MQTT | Yes |
| Webhooks | Yes |
| Overcurrent Protection | Yes |
| Overtemperature Protection | Yes |
| Dimensions | 42 × 37 × 12 mm |
| Weight | Approx. 17g |
| Colour | Yellow |
What Makes the Shelly Plus RGBW PM Different?
A basic LED controller gives you colour and brightness control.
The Shelly Plus RGBW PM adds smart-home connectivity, automation and energy monitoring.
You can:
Control → Automate → Monitor → Optimise
all from one compact device.
Whether you’re installing a single RGBW strip behind a TV, creating sophisticated multi-zone lighting or building an advanced Home Assistant system, the Shelly Plus RGBW PM provides the flexibility to grow with your installation.
Installation Note
The Shelly Plus RGBW PM must be powered from a suitable 12V or 24V DC constant-voltage power supply.
Select a power supply capable of safely supplying the total current required by your LED strips. Do not exceed the controller’s 4A per-channel or 10A total output rating.
The controller is intended for constant-voltage LED strips and must not be used directly with mains-voltage lighting or constant-current LED drivers.
Installation should be performed by a suitably qualified person where required.
