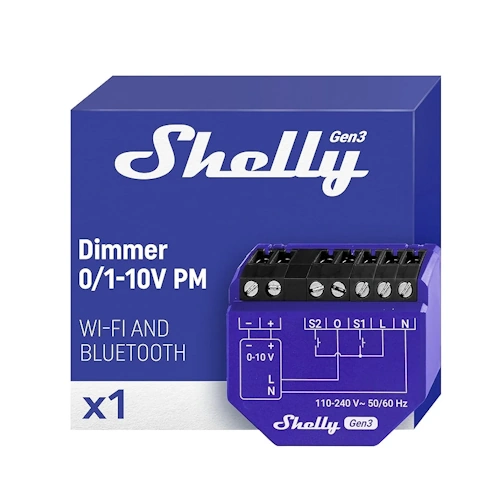

Shelly Dimmer 0/1-10V PM Gen3 – Smart 0-10V & 1-10V Dimmer Controller with Power Monitoring
Bring intelligent control and precise dimming to professional 0-10V and 1-10V lighting systems with the Shelly Dimmer 0/1-10V PM Gen3.
Designed for modern LED drivers, commercial lighting and other compatible 0-10V or 1-10V equipment, this compact smart controller combines precise analogue dimming, remote control, local automation and power monitoring in a single module.
The Shelly Dimmer 0/1-10V PM Gen3 uses a current-sourcing 0-10V/1-10V output to control compatible dimmable drivers, allowing brightness to be adjusted smoothly from your smart home or building automation system. It can also control equipment such as compatible motors and valves that use a 0-10V or 1-10V control signal.
Unlike conventional 0-10V controllers, the Shelly Dimmer adds smart connectivity and automation without requiring a dedicated hub. Connect it directly to your Wi-Fi network, integrate it with your preferred automation platform, or use its local web interface for direct control.
Key Features & Benefits
🎚️ Smart 0-10V & 1-10V Dimming
Control compatible 0-10V and 1-10V LED drivers and equipment with precise, adjustable output levels. The current-sourcing output supports up to 35 mA, making the device suitable for a wide range of professional lighting-control applications.
💡 Precise Lighting Control
Set minimum and maximum brightness levels, transition times and button fade rates to achieve the lighting behaviour you want. The device also supports one-button and dual-button dimming, allowing you to retain conventional wall-switch control alongside smart automation.
⚡ Built-In Power Monitoring
Monitor the electrical performance of the connected circuit with real-time measurements of:
- Voltage
- Current
- Active power
- Apparent power
- Active energy
- Apparent energy
- Power factor
This makes the Shelly Dimmer 0/1-10V PM Gen3 useful not only for lighting control, but also for energy monitoring and optimisation.
🔌 Integrated Relay Output
In addition to the 0-10V/1-10V dimming signal, the device includes a switched relay output rated up to 13A at 240V AC. This can be used where the controlled equipment requires separate on/off switching in addition to the analogue dimming signal.
📱 Wi-Fi Control – No Hub Required
Connect directly to your 2.4 GHz Wi-Fi network without needing a dedicated Shelly hub. Control the device remotely using the Shelly Smart Control platform, or operate it locally through its web interface.
The device also supports integration with third-party automation platforms including Home Assistant, Google Home, Amazon Alexa and Samsung SmartThings.
📶 Bluetooth Gateway & Wi-Fi Range Extender
Bluetooth connectivity makes initial setup convenient and allows the device to operate as a Bluetooth gateway. It can also function as a Wi-Fi range extender, helping extend network connectivity where required.
🏠 Advanced Local Automation
The Shelly Dimmer 0/1-10V PM Gen3 is designed for more than simple app-based switching. Advanced functionality includes:
- Weekly schedules
- Advanced schedules
- Sunrise/sunset automation
- Local actions
- Auto on/off timers
- Webhooks
- MQTT
- mJS scripting
- Virtual components
- Key-value storage
- Activity logging
This makes it suitable for both simple residential automation and more sophisticated commercial and building-management applications.
🌙 Night Mode & Custom Dimming Profiles
Create different lighting behaviours for different times of day. Night Mode can automatically reduce lighting levels during specified periods, while configurable minimum and maximum brightness limits help ensure that the connected lighting always operates within the desired range.
🔧 Retrofit Existing 0-10V Lighting
Upgrade existing 0-10V or 1-10V lighting installations without replacing the entire control system. Existing physical switches can continue to be used, while the Shelly controller adds remote access and automation.
This makes it particularly useful for office lighting, retail spaces, hotels, apartment buildings, commercial premises and smart-home installations.
🛡️ Built-In Protection
The Shelly Dimmer 0/1-10V PM Gen3 includes protection against:
- Overheating
- Overvoltage
- Overcurrent
- Overpower
An internal temperature sensor provides additional monitoring of the device during operation.
Ideal Applications
The Shelly Dimmer 0/1-10V PM Gen3 is an excellent choice for:
- 0-10V LED lighting control
- 1-10V LED driver control
- Commercial LED lighting
- Office lighting automation
- Hotel and hospitality lighting
- Retail and showroom lighting
- Residential 0-10V lighting
- Smart building automation
- Compatible 0-10V motors
- Compatible 0-10V valves
- Energy monitoring
- Lighting schedules and scene control
- Home Assistant installations
For example, you can automatically reduce office lighting after hours, adjust brightness according to sunrise and sunset, create low-light night scenes, or use occupancy and other sensors to automate lighting levels.
Why Choose the Shelly Dimmer 0/1-10V PM Gen3?
The Shelly Dimmer 0/1-10V PM Gen3 bridges the gap between traditional professional lighting control and modern smart-home automation.
Instead of replacing an existing 0-10V lighting installation with a proprietary control system, you can retain your existing compatible drivers and switches while adding Wi-Fi connectivity, remote control, automation, scheduling and energy monitoring.
It is particularly well suited to installers, integrators, smart-home enthusiasts and businesses looking to modernise existing 0-10V / 1-10V lighting systems.
Specifications at a Glance
| Specification | Details |
|---|---|
| Model | S3DM-0010WW |
| Device Type | Smart 0-10V / 1-10V dimming controller |
| Dimming Type | Current-sourcing |
| Control Output | 0-10V / 1-10V |
| Maximum Control Current | 35 mA |
| Relay Output | Up to 13A / 240V AC |
| Power Monitoring | Voltage, current, active/apparent power, energy & power factor |
| Power Supply | 110–240V AC, 50/60Hz |
| Connectivity | Wi-Fi 802.11 b/g/n + Bluetooth 4.2 |
| Wi-Fi Band | 2.4 GHz |
| Bluetooth | Bluetooth 4.2 |
| CPU | Shelly ESP32-C3 |
| Flash Memory | 8 MB |
| Dimensions | 38.5 × 43.5 × 17 mm |
| Weight | Approx. 28.5 g |
| Operating Temperature | -20°C to 40°C |
| Power Consumption | <1.5 W |
| Installation | Behind wall switches, wall consoles or ceiling installations |
| Neutral Required | Yes |
The official specifications confirm the 110–240V supply, 13A relay output, 35mA control output, 0/1-10V current-sourcing operation and 38.5 × 43.5 × 17mm form factor.
Important Compatibility Note
This is a 0-10V / 1-10V controller and is not a conventional mains-phase dimmer. The connected LED driver or equipment must specifically support 0-10V or 1-10V control.
The device requires a neutral connection and should be installed in accordance with applicable electrical regulations. Shelly recommends appropriate external circuit protection; the documented requirement is a 16A external protection device with the specified characteristics.
Installation of mains-powered equipment should be carried out by a suitably qualified electrician.
